Cast Iron vs. Modern Pipe: What's in Your Building's Walls — and What Happens When It Fails.
Most commercial buildings constructed before 1985 have cast iron sewer lines. Those lines are now 40–60 years old. Here's what happens to cast iron over that timeline — and what it looks like when it starts to go.
WHAT ERA IS YOUR BUILDING?
The Pipe Material in Your Building Was Decided the Year It Was Built.
In Southern California's commercial building stock, the construction era is the most reliable predictor of what sewer material you have — and how close it is to the end of its serviceable life.
Pre-1960
Hub-and-Spigot Cast Iron
Lead and oakum caulked joints at every connection point. This is the oldest cast iron commercial stock — now 65+ years in service. Graphitization is likely widespread. Joint failure at lead seals is common.
If still in service: the system should be camera-inspected immediately. Structural integrity cannot be assumed.
Immediate Assessment1960–1979
Cast Iron, Compression Joints
Rubber compression joints replace lead/oakum. Still predominantly cast iron on all drain, waste, and vent lines. This is the single largest block of aging commercial pipe in Southern California — and the stock most likely to be showing symptoms now.
High Priority Review1980–1989
Transition Era
Cast iron on main commercial drain lines; ABS and PVC beginning to appear in lighter applications and residential. Most commercial buildings from this period still have cast iron on their primary horizontal runs and underground lines.
Monitor Condition1990–Present
PVC / ABS Standard
Schedule 40 PVC and ABS become standard for commercial construction. Cast iron still specified in some applications for noise control (multi-story buildings, healthcare) and large-diameter industrial lines. Modern PVC has an expected lifespan of 100+ years.
No Immediate ConcernIT'S NOT JUST GRAPHITIZATION
Six Ways Cast Iron Sewer Pipe Fails in Commercial Buildings.
Graphitization is the most insidious failure mode — but aging cast iron is subject to multiple compounding problems that can occur independently or together. Understanding which type of failure is present determines the right repair approach.
Scale Accumulation
Decades of mineral deposits, grease, and organic material build up on the rough interior surface of cast iron — rougher than PVC — progressively narrowing the effective pipe diameter. A 4-inch line with ¾ inch of scale is functionally a 2.5-inch line operating at a fraction of design capacity.
Bellied Sections
Ground settlement, seismic activity, or inadequate initial support causes sections of horizontal pipe to dip below the intended slope. Water — and everything in it — pools permanently in the low point. Standing organic material creates ongoing blockage and accelerates corrosion from below the waterline.
Hydrogen Sulfide Corrosion
Anaerobic bacteria in slow-moving drain water produce H₂S gas. Above the waterline inside the pipe, H₂S reacts with condensation to form sulfuric acid. This attacks the interior pipe wall continuously — independently of graphitization — and is most aggressive in low-slope or partially-full lines.
Root Intrusion
Tree and shrub root systems detect moisture and warmth at cast iron joint gaps. Roots enter through compression joint openings or cracked bell ends, grow inside the pipe, and eventually form dense root masses that block flow entirely. Underground and below-slab lines are most exposed.
Hub Joint Degradation
Every cast iron segment connects at a hub-and-spigot joint. Lead/oakum caulked joints from pre-1960 construction fail as the lead oxidizes. Even rubber compression joints degrade after 40–50 years, opening gaps that allow groundwater infiltration and sewage exfiltration into the soil.
Offset and Misalignment
Soil movement and seismic events shift individual pipe sections laterally, creating offset joints where adjacent sections no longer align. Offsets restrict flow at the joint, create turbulence that accelerates scale buildup, and provide entry points for root intrusion and debris accumulation.
WHAT A SEWER CAMERA ACTUALLY SHOWS YOU
The Only Reliable Assessment Is Visual, From Inside the Pipe.
External inspection, pressure testing, and drain performance alone cannot determine the structural condition of cast iron. A high-resolution camera inspection is the diagnostic tool that maps what's inside — and what the decision should be.
Finding: Serviceable
Smooth Interior, Clear Joints
Interior walls show minor surface oxidation but no structural loss. Joint connections are intact with no visible gaps or root entry. Flow cross-section is near original diameter.
What you see: Clean pipe walls, consistent interior diameter, no standing water, tight joints.
Finding: Scale Buildup
Reduced Diameter, Orange-Brown Deposits
Heavy mineral and grease deposits coat the interior wall, visibly reducing the flow opening. The deposit surface is rough and irregular. Flow capacity may be reduced by 30–60% before blockage symptoms appear above.
What you see: Orange or brown buildup on all surfaces, concentric narrowing, debris caught on deposit ridges.
Finding: Graphitization
Pitting, Soft Wall, Irregular Surface
The interior wall shows pitting, irregular surface texture, and areas where the iron has dissolved. The pipe may still hold its shape but the wall profile is inconsistent. In advanced cases, the camera may show partial wall collapse or cracks.
What you see: Dark pitting, non-uniform wall surface, possible fracture lines, collapsed sections in severe cases.
Finding: Belly / Low Point
Standing Water, Permanent Pool
The camera enters standing water that does not move with flow. The pipe clearly dips below the intended slope gradient. Organic material has accumulated in the low point and the waterline shows a dark stain line above from recurring flow events.
What you see: Camera enters a pool of standing dark water; waterline stain on pipe wall above; debris at the low point.
Finding: Root Intrusion
Root Mass at Joint Locations
Fine root tendrils enter at joint gaps and grow into dense root masses in the direction of flow. Early-stage roots are hair-like. Advanced intrusion fills the cross-section with a fibrous mass that traps debris and restricts flow to a trickle.
What you see: White or light-colored root tendrils at joint locations; dense fibrous mass at advanced stage; debris accumulation downstream.
Finding: Joint Failure / Offset
Gap at Connection, Lateral Shift
The joint between two sections is open — either pulled apart longitudinally or shifted laterally. Groundwater infiltration may be visible as a trickle or seep at the joint. Offset joints create an abrupt step in the pipe interior that catches debris.
What you see: Visible gap or lateral shift at the joint; possible infiltration water seeping in; abrupt change in pipe alignment.
WHAT THE DIFFERENCE LOOKS LIKE
Corroded Cast Iron vs. Restored Line.

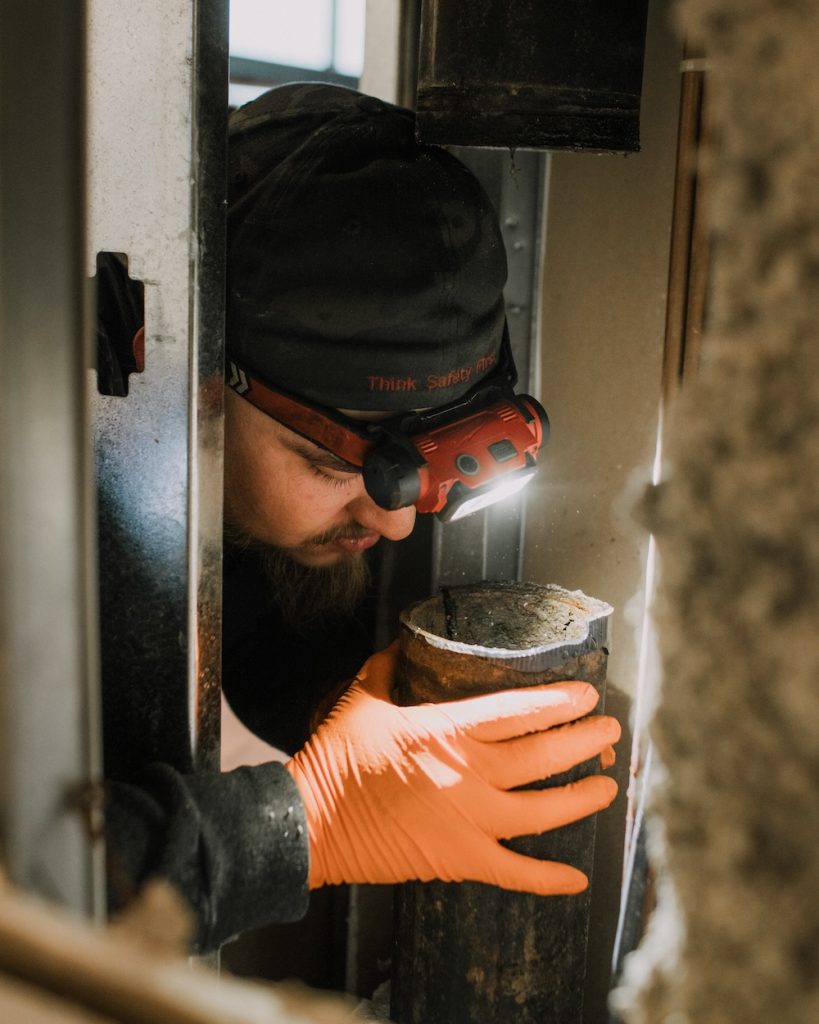

Before — Deteriorated Cast Iron
- Graphitization weakening pipe walls from the inside out
- Root intrusion through cracked joints and failed connections
- Scale and corrosion buildup reducing flow by 40–60%
- Pitting and pinhole leaks developing at thin spots
- Sewage odor from compromised joints and fractures
After — Relined or Replaced
- Structural integrity restored to full rated capacity
- Root-proof joint connections — no entry points
- Smooth interior surface with full flow diameter restored
- No active leaks, no infiltration, no exfiltration
- 50+ year expected service life on new material
THE DECISION: REPAIR, RELINE, OR REPLACE
Not Every Cast Iron Problem Requires Demolition.
The right intervention depends on what the camera found, how much of the system is affected, and what the building's use demands. A camera inspection report gives you the data to make the decision on scope — not just symptoms.
01
Targeted Repair
Spot Repair of Isolated Sections
When the camera identifies a discrete problem — a single failed joint, a cracked section, a localized collapse — targeted repair opens only the affected area and replaces that segment. The surrounding pipe is left in place.
Requires opening the wall, floor, or ceiling above the affected section. Most appropriate when the rest of the system shows no structural concerns on camera.
Best for: Single-point failures in otherwise serviceable cast iron. Limited demo access. Systems less than 40 years old with isolated damage.
02
Trenchless Relining
CIPP — Cured-in-Place Pipe Lining
A resin-saturated flexible liner is inserted through a cleanout access point and inflated against the existing pipe interior, then cured in place — creating a new smooth pipe within the old one. No demolition. No wall opening. The liner bonds to the interior surface and bridges cracks, seals joints, and eliminates scale.
Reduces interior diameter by approximately ¼ inch. Cannot correct bellied sections (the liner follows the existing slope). The cast iron remains as an outer shell.
Best for: Systems with widespread cracking, joint failure, or scale — where the structural shape is intact but the surface is compromised. Slab-on-grade and inaccessible-chase runs.
03
Sectional Replacement
Replace a Defined Run of Pipe
When camera inspection reveals a defined section with advanced graphitization, multiple belly points, or widespread joint failure — but the rest of the system is intact — sectional replacement removes and replaces that run with Schedule 40 PVC or ABS. Requires controlled demolition of the material above or around that section.
More disruptive than relining but appropriate when the structural integrity of a section is too compromised for lining to adhere reliably.
Best for: Identified sections with graphitization, bellies, or root intrusion in otherwise serviceable buildings. Accessible runs in open ceilings or utility chases.
04
Full System Replacement
Complete Drain, Waste & Vent Replacement
When camera inspection shows graphitization, bellied sections, and joint failure throughout — not in one area but across the system — targeted repair and lining become uneconomical. Full replacement removes all cast iron and installs new PVC with a 100+ year expected lifespan.
Significant scope and disruption, but provides a definitive resolution and eliminates ongoing repair cycles. Most cost-effective when camera findings affect more than 40–50% of the system.
Best for: Pre-1970 buildings with systemic graphitization. Properties with multiple recurring backup events. Buildings where camera reveals system-wide compromise.
WHY COMMERCIAL IS MORE COMPLICATED THAN RESIDENTIAL
Four Reasons Cast Iron Failure Hits Commercial Properties Harder.
A residential cast iron failure is a serious homeowner problem. A commercial cast iron failure is an operational, legal, and tenant liability event. The same failure mode produces radically different consequences.
Commercial Lines Carry a Fraction More — Every Day
A restaurant or multi-tenant building puts dramatically more daily demand through its drain lines than a comparable residential footprint. Higher volume means faster scale accumulation, faster graphitization progression, and less margin between a compromised system and a failure event.
Most of It Is Under a Concrete Slab
Commercial cast iron is frequently buried under slab-on-grade concrete or run inside sealed wall chases. There is no crawl space. Opening the system for targeted repair requires saw-cutting, controlled demolition, and restoration — a cost multiplier that doesn't exist in residential work.
One Line Failure Affects Multiple Tenants
A sewer line serving a strip center, food court, or multi-tenant office building is shared infrastructure. A single point of failure can shut down multiple tenants simultaneously. Repair scheduling, access coordination, and operational disruption become a multi-party negotiation.
Commercial Sewer Events Trigger Institutional Response
A sewer backup in a commercial kitchen is a health code event. A sewage release in a common area creates potential liability for property management. Commercial failures are documented, reported, and reviewed in ways that residential events are not — making prevention a risk management priority, not just a maintenance one.
